LPG flow meter/lpg gas flowmeter

FOB Reference Price:Get Latest Price
$10.00 - $200.00 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
supertech
Model Number:
LPGFM1
material:
Iron
Supply Ability
Supply Ability:
1000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
wooden box or carton
Port
Ningbo or Shanghai Port
Lead Time :
Shipped in 30 days after payment
Video Description
Product Description

Product Application

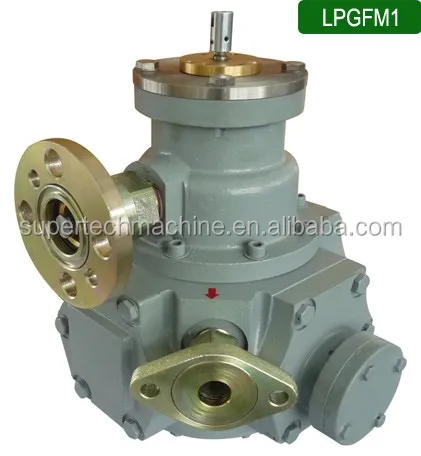

LPGFM1 Flow Meter is designed with international advanced standards based on customers requirements. It is using cast iron body,stainless steel cylinder liner,and four-pistoned construction with check valve inlet, high strength,high wearability ,and high accuracy, long service lift . it can be used for gasoline, diesel, kerosene or compound of them.

2. Working Principle: Petroleum flows out of pump flows into flow meter, it causes a angular deviation to the flow meter transmission shaft, and the pulse generating gadget gives out pulse signal to indicate the volume of the liquid.

Technical Specification

Max.Working Pressure
1.8Mpa
Flow rate
5-60L
Discharge rate per revolution
0.5L
Adjustable Min.volume
0.1%
Accuracy
±0.3%
Repeatable Tolerance
≤0.15%

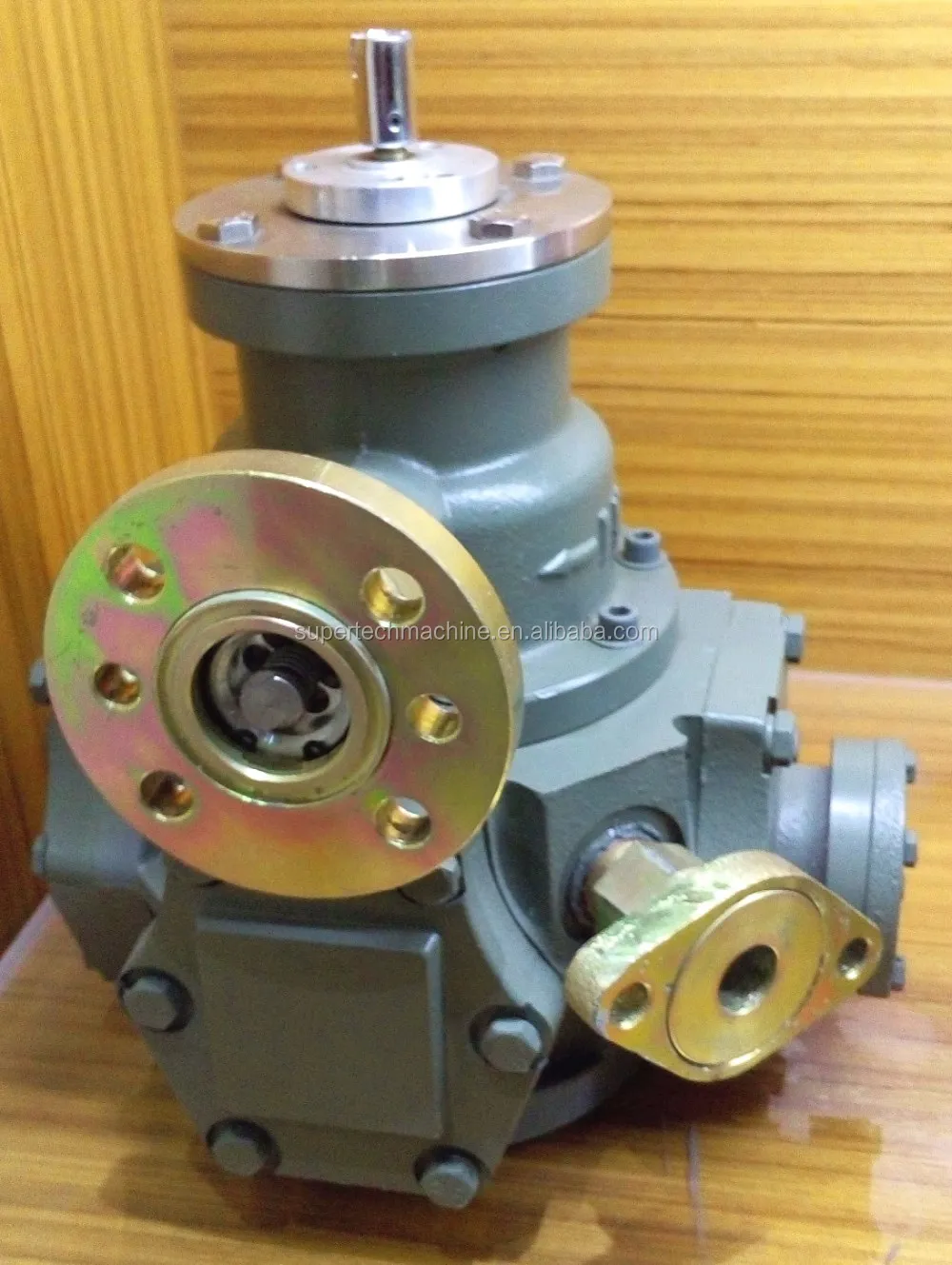

Detailed Images






                                        Type1 is round outlet





Type2 use quadrangular outlet

.

Packing & Delivery

Packing

Package: 1pc/ wooden box or carton

Net weight:31kg

Gross weight:33kg

Dimension:360*290*360mm

Delivery

By sea or by air

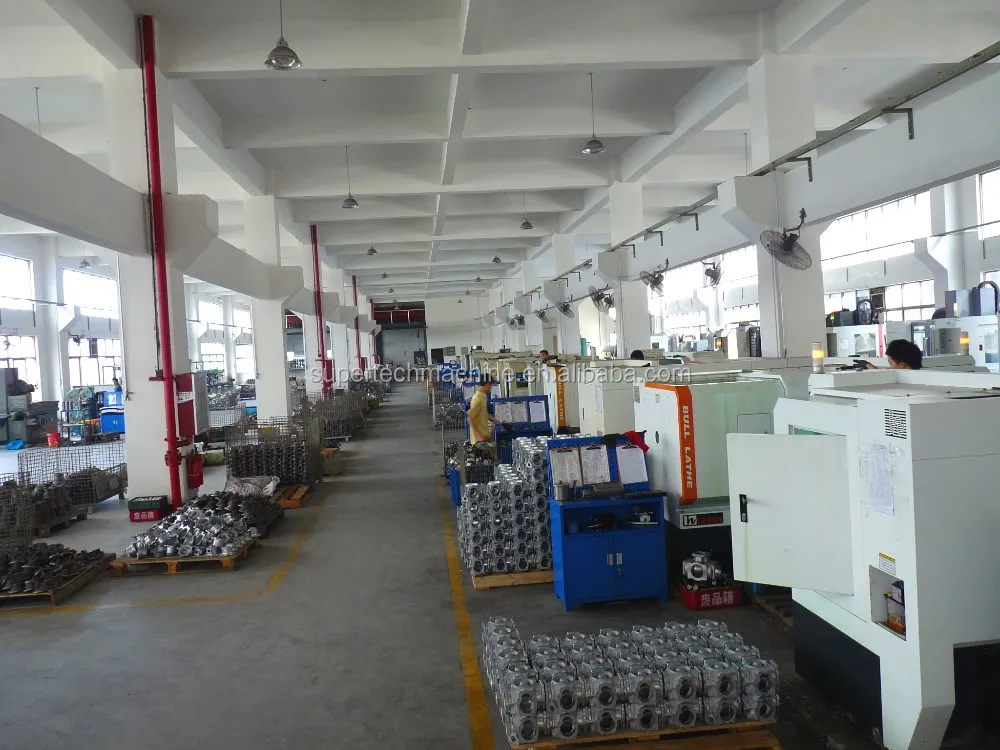

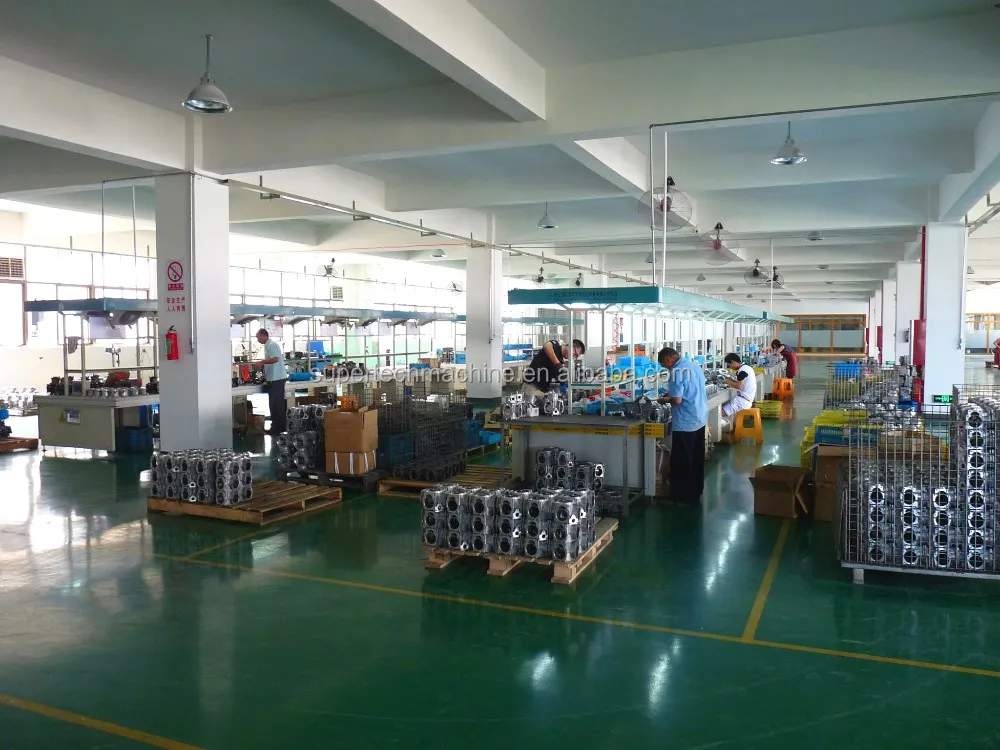

Our Company

Wenzhou Supertech Machine co.,ltd is a professional producer for fuel and LPG equipments. Over the year, we import and absorb foreign advantage technology, and independent innovation constantly, Now we have already have 6 Series 40 kinds of products .

We always regard the quality as enterprise life,base on the ISO9000 quality management system,and have the advantage process machine,and with our strict measuring system ,make our products in good performance, reliable quality, wear well.

Our aim is attracing clients by good service, Winning clients by top quality.
